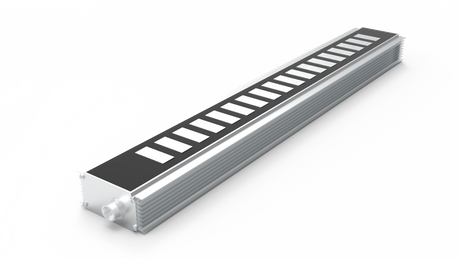

Linear permanent magnet motor was designed to achieve a better performance and energy saving, as well as an easier installation on site.
Motor type: synchronous permanent magnet motor
Nominal Input Voltage: 380V-400V
Nominal Input Frequency: 50/60Hz
Nominal Thrust Force: 200N
Max. Thrust Force: 400N
Nominal Current: 2A
Max. Current: 4A
Speed Range: 0.8-3m/s
Installation Air Gap: 6mm-10mm
Insulation Grade: F
Degree of Protection: IP65
Ambient temperature（Primary）: -30℃ to 45℃
